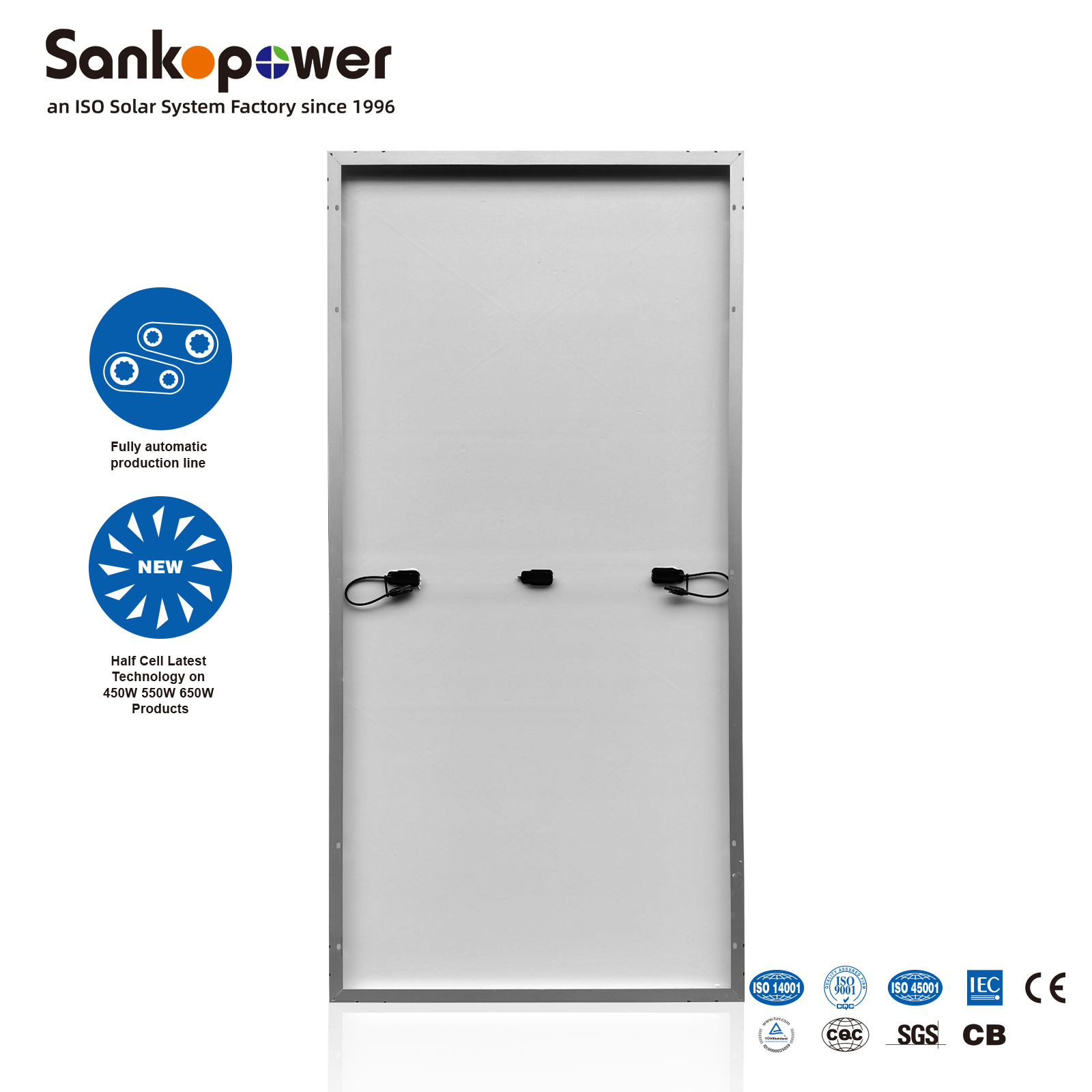

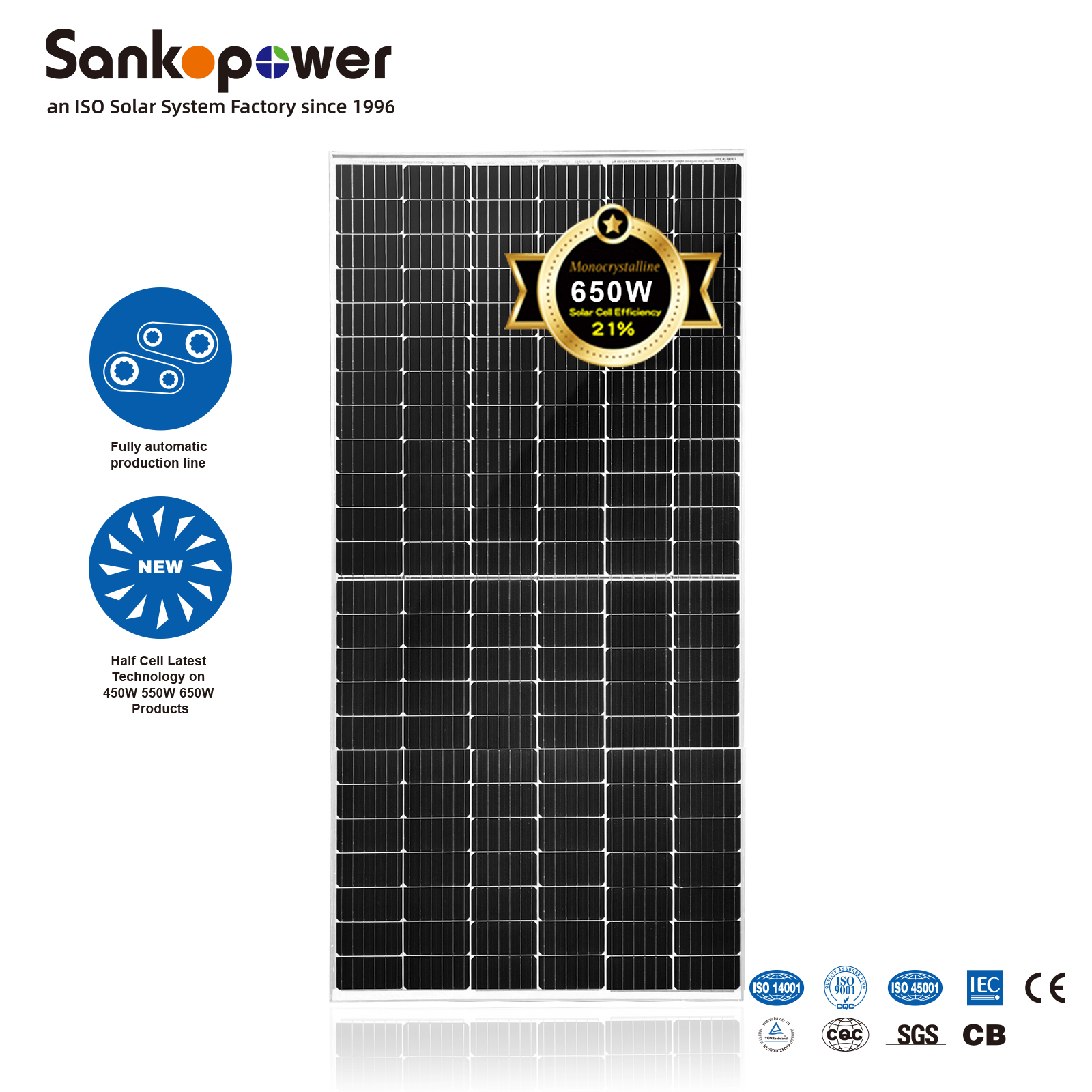

645W-675W Mono Solar Panels Half Cut 132 Cell Photovoltaic Module; 12BB Half Cut solar panel factory - 132 cells 645W, 650W, 655W, 660W, 665W, 670W, 675W solar panel for residential solar system and commerial solar.
SankoPower is a solar panel PV module factory and solar panel supplier in China. 650W Half Cell Mono Solar Panel is the latest solar panel in market, high power with high efficiency. 650W mono solar panels are best choice for ground mounting power plant or solar plant.
With 210mm Cells Mono PERC with 12BB & Half-cut latest technology, Sankopower 650W Half Cell Mono Solar Panel Power Range 645W, 650W, 655W, 660W 665W 670W 675W. SankoPower have standard industry module size, compatible with other brands modules and inverters, more economic for changing and maintenance. Thanks to the Half-Cut technology, the cell internal resistance is reduced, which provides an additional module power even while shading, cloudy weather, and in low light conditions.
| Product Name | Half-Cell | Solar Cell Type | Wattage | Silicon Type | |
| Model No. Explanation | PVSK-650 | 132 PCS | 210*210mm | 650W | M: Monocrystalline |
Remark: 650W Solar Panel is most popular model.
Solar Panel, Solar Modules, Monocrystalline Module, PV Modules PVSK-645M PVSK-650M PVSK-655M PVSK-660M PVSK-665M PVSK-670M PVSK-675M
| Electrical Specification (STC*) | |||||||
| Maximum Power Pmax(W) | 645 | 650 | 655 | 660 | 665 | 670 | 675 |
| Maximum Power Voltage Vmp(V) | 37.2 | 37.4 | 37.6 | 37.8 | 38.0 | 38.2 | 38.4 |
| Maximum Power Current lmp(A) | 17.34 | 17.38 | 17.42 | 17.46 | 17.50 | 17.54 | 17.58 |
| Open Circuit Voltage Voc(V) | 45.0 | 45.2 | 45.4 | 45.6 | 45.8 | 46.0 | 46.2 |
| Short Circuit Current lsc(A) | 18.41 | 18.46 | 18.50 | 18.55 | 18.60 | 18.65 | 18.70 |
| Module Efficiency (%) | 20.7 | 20.9 | 21.0 | 21.2 | 21.4 | 21.5 | 21.7 |
| Power Output Tolerance (W) | 0~+5 | ||||||
| *lrradiance 1000W/m², Module Temperature 25°C. Air Mass 1.5 | |||||||
| Electrical Specification (NOCT*) | |||||||
| Maximum Power Pmax(W) | 488 | 492 | 496 | 500 | 504 | 509 | 513 |
| Maximum Power Voltage Vmp(V) | 34.7 | 34.9 | 35.1 | 35.3 | 35.5 | 35.7 | 35.9 |
| Maximum Power Current lmp(A) | 14.05 | 14.09 | 14.13 | 14.18 | 14.22 | 14.27 | 14.31 |
| Open Circuit Voltage Voc(V) | 42.4 | 42.6 | 42.8 | 43.0 | 43.2 | 43.4 | 43.6 |
| Short Circuit Current lsc(A) | 14.81 | 14.85 | 14.88 | 14.92 | 14.96 | 15.00 | 15.04 |
| * lrradiance 800W/m². Ambient Temperature 20℃. Wind Speed 1m/s | |||||||
| Mechanical Data | |||||||
| Number of Cells | 132 Cells (6×22) | ||||||
| Dimensions of Module L*W*H[mm] | 2385×1303×35mm(93.85×51.29×1.38 inches) | ||||||
| Weight [kg] | 35.7Kg | ||||||
| Glass | High transparency solar glass 3.2mm （0.13 inches) | ||||||
| Backsheet | White | ||||||
| Frame | Silver, anodized aluminium alloy | ||||||
| J-Box | IP68 Rated | ||||||
| Cable | 4.0mm²(0.006 inches²), 300mm(11.8 inches) | ||||||
| Number of diodes | 3 | ||||||
| Wind/ Snow Loas | 2400Pa/ 5400Pa* | ||||||
| Connector | MC Compatible | ||||||
| * For more details please check the installation manual | |||||||
| Temperature Ratings | |
| Nominal Operating Cell Temperature（NOCT） | 43±2°C |
| Temperature Coefficient of Isc | 0.04%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of PMAX | -0.340%/°C |
| Maximum Ratings | |
| Operational Temperature | -40~+85°C |
| Maximum System Voltage | 1500V DC-(H） |
| Max Series Fuse Rating | 25A |
| Packaging Configuration | |
| Module per box | 31 pcs |
| Module per 40' container | 558 pcs |
| Optional | |
| Connector | ■ MC Original |
