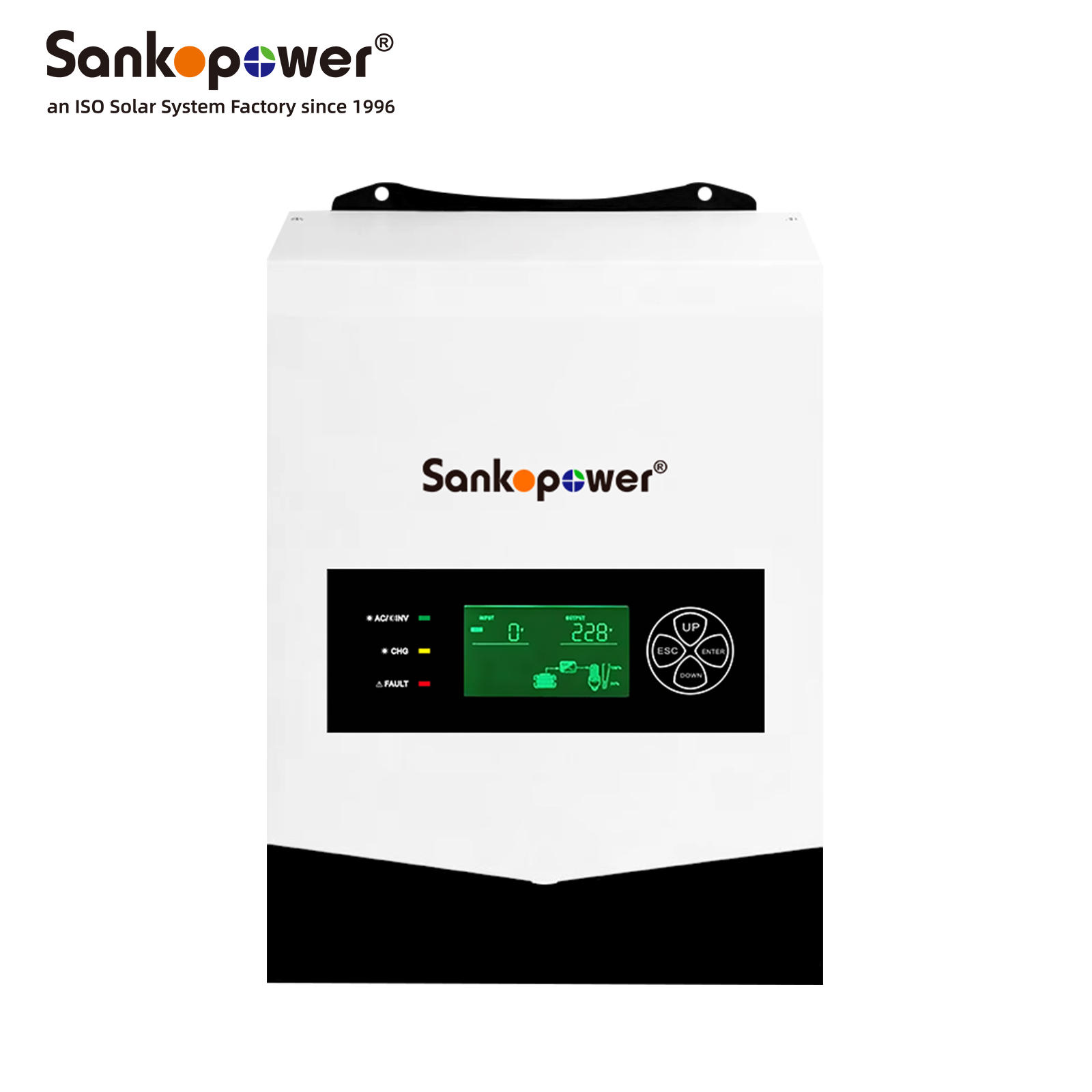

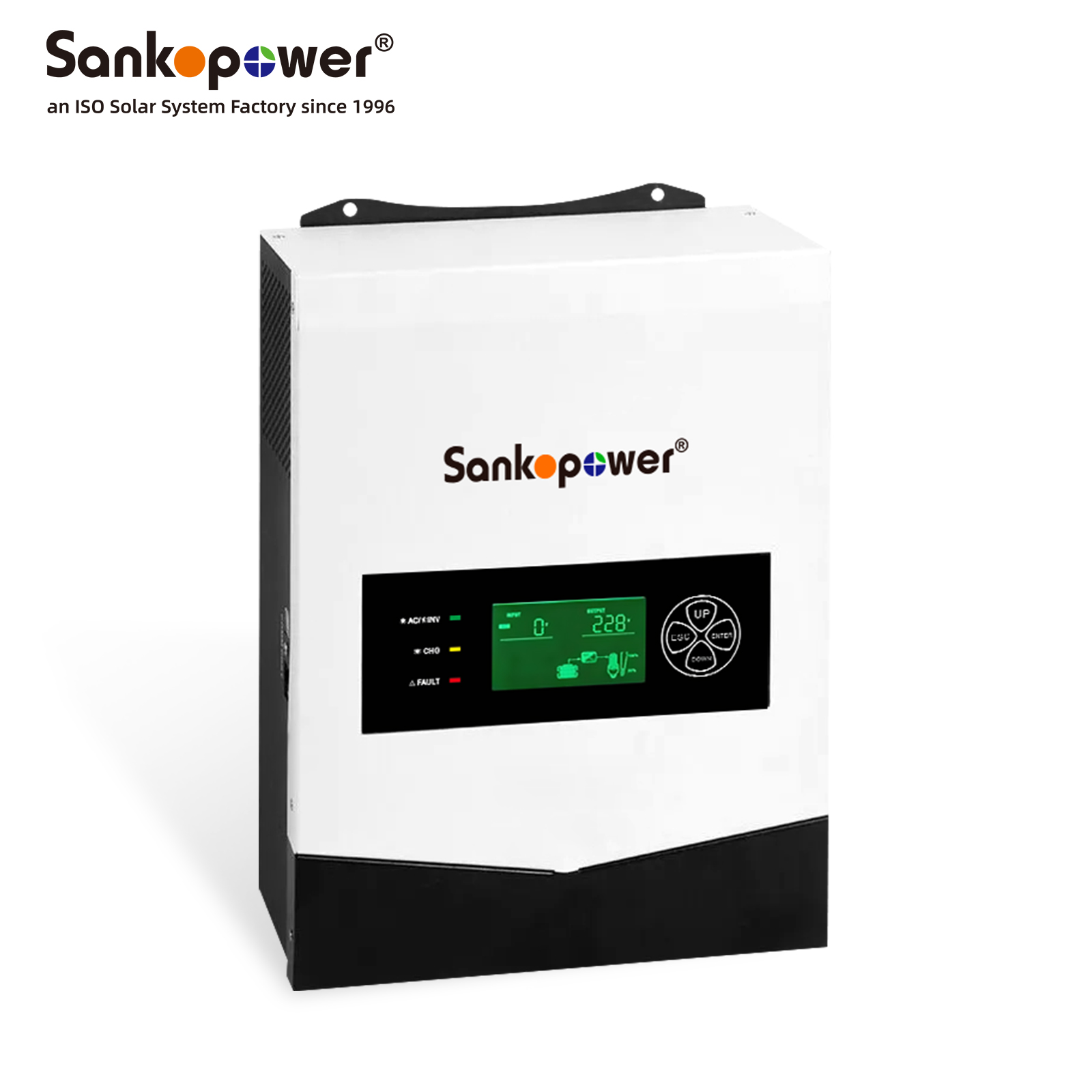

1KW-3KW MPPT Solar Inverter Solarsun Series

1KW-3KW MPPT Solar Inverter Solarsun Series - SankoPower

1000W-3000W 1000VA-3000VA Solar Inverter, Off-Grid inverter, with 50A MPPT Solar Charger built-in, 230VAC Input Voltage, This 1KW-3KW 24V MPPT Solar Inverter Solarsun Series is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support. It is perfect backup power supply for off-grid system like household appliances, power tools, industrial equipment, and electronic audio and video equipment.

1KW-3KW MPPT Solar Inverter Solarsun Main Features

  • Pure Sine Wave MPPT Solar Inverter
  • With 50A MPPT Solar Charge Controller built-in
  • Can work with battery and without battery
  • When solar energy is insufficient, it can switch to the utility
  • Smart battery charger and management for optimized battery performance
  • Overload/overcharge/over discharge/high temperature/short circuit protection
  • Auto restart while AC is recovering
  • With Touch Button on the LCD display
  • CE/CB Certificate

1KW-3KW MPPT Solar Inverter Solarsun Series

Input Voltage Waveform Sinusoidal(utility or generator)
Nominal Input Voltaga 230Vac
Low Loss Voltaga 170Vac±7V(UPS); 90Vac±7V (Appliances)
Low Loss Returm voltage 180Vac±7V (UPS); 100Vac±7V(Appliances)
High Loss Voltaga 280Vact7V
Hligh Loss Return Voltaga 270Vac±7V
Max AC Input Voltage 280Vac
Nominal Input Frequency 50Hz/60Hz(Auto  detection)
Low Loss Frequency 40±1Hz
Low Loss Return Frequency 42±1Hz
High Loss Frequency 65±1Hz
Hligh Loss Return Frequency 63±1Hz
Output Short Circuit Protection Circuit Breaker
Efficiency (Line Mode) >95%(Rated R load,battery full charged)
Transfer Time 10ms typical (UPS); 20ms typical (Appliances)
Inverter Mode Specifications
Rated Output Power 1KW 2KW 3KW
Output Voltage Wavaform Pure Sine Wave
Output Voltago Ragulation 230Vac±5%
Output  Frequency 50Hz/60Hz
Peak Efficiency 93%
Overload Protection 5s@150%  load;  10s@105%-150%  load
Surge Capacity 2*rated power for 5 seconds
Nominal DC Input Voltage 12.0Vdc 24.0Vdc 24.0Vdc
Cold Start Voltage 11.5Vdc 23.0Vdc 23.0Vdc
Charge Mode Specifications
Utility Charging Mode
Charging Algorithm 3  steps
Ac Charging Current (Max) 25Amp    (INPUT=230Vac)
Voltage 14.1Vdc 28.2Vdc 28.2Vdc
Floating Charging Voltage 13.5Vdc 27Vdc 27Vdc
MPPT Solar  Charging Mode
Charg in g Curent 40Amp
System DC Voltage 12Vdc 24Vdc 24Vdc
Operating Voltage Range 18-80Vdc 36-80Vdc 36-80Vdc
Max. PV Array Open Circuit Voltage 115Vdc
DC Voltage Accuracy ±0.3%
Max Charging Current (AC+ solar) 65Amp
MPPT Solar Charging Mode
Max. generated frorm solar charger 40Amp, 500W 40Amp, 1000W 40Amp, 1000W o r 50Amp, 1200W
Best Panel configuration 250Wp*2PCS*30V 270Wp*2PCS*3V 2 Parallel 270Wp*2PCS*3OV 2 Parallel 300Wp*2PCS*30V 2 Parallel
