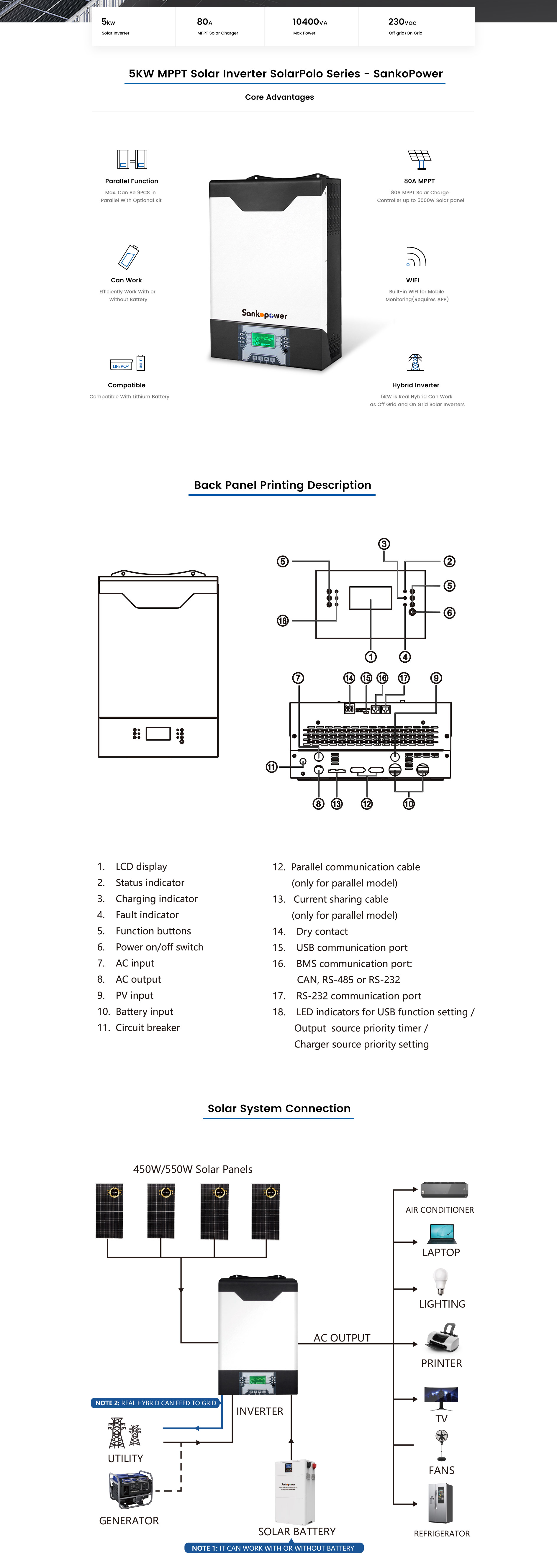

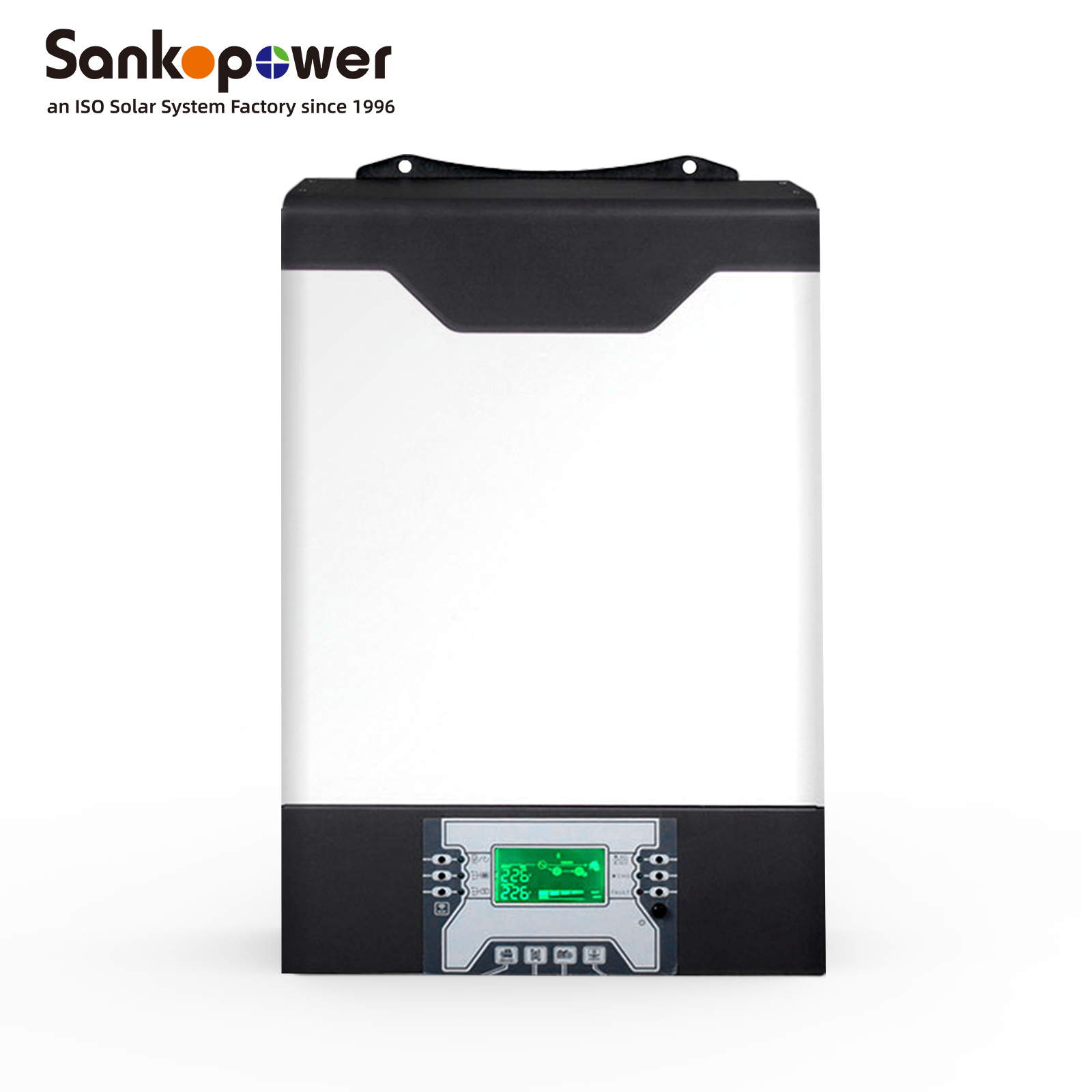

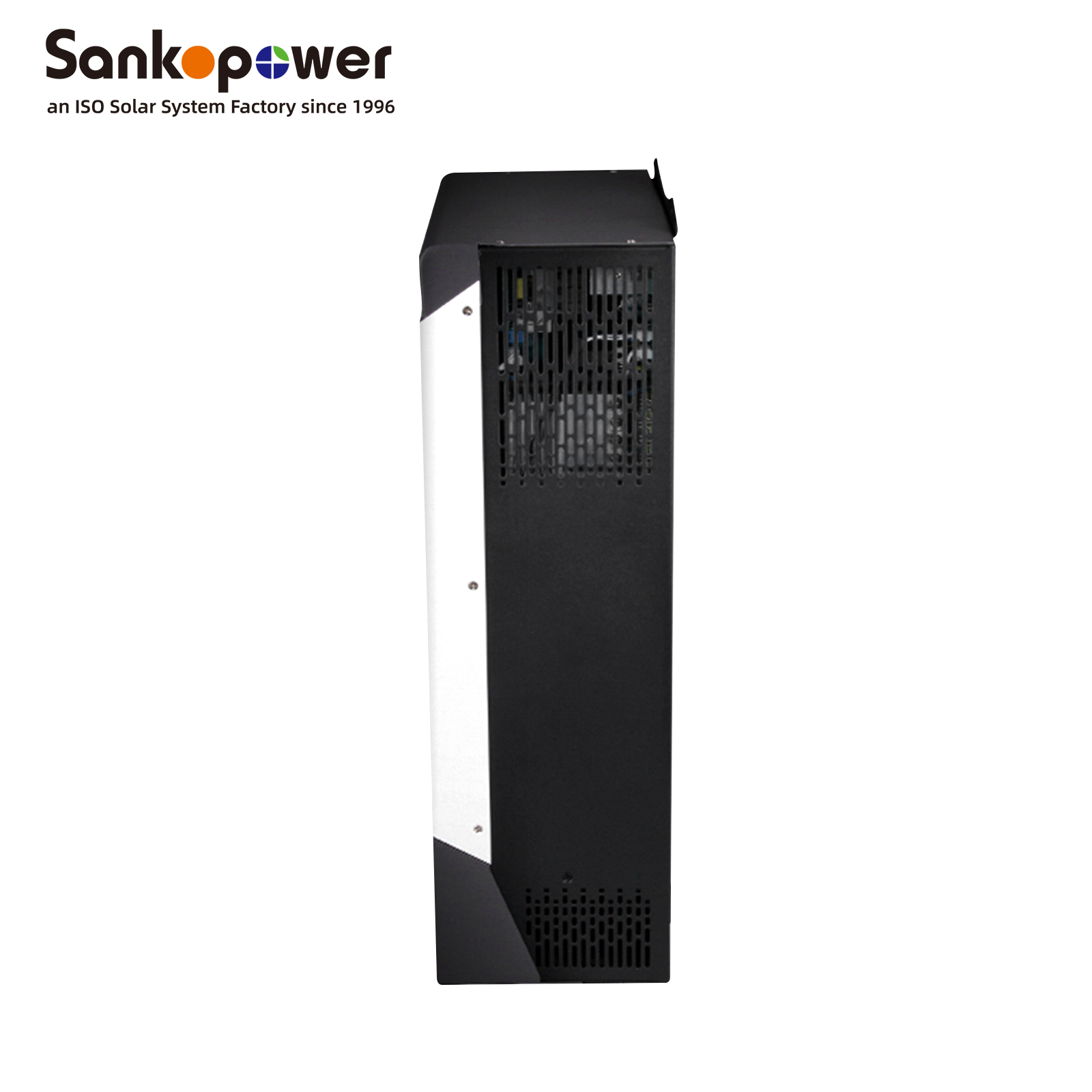

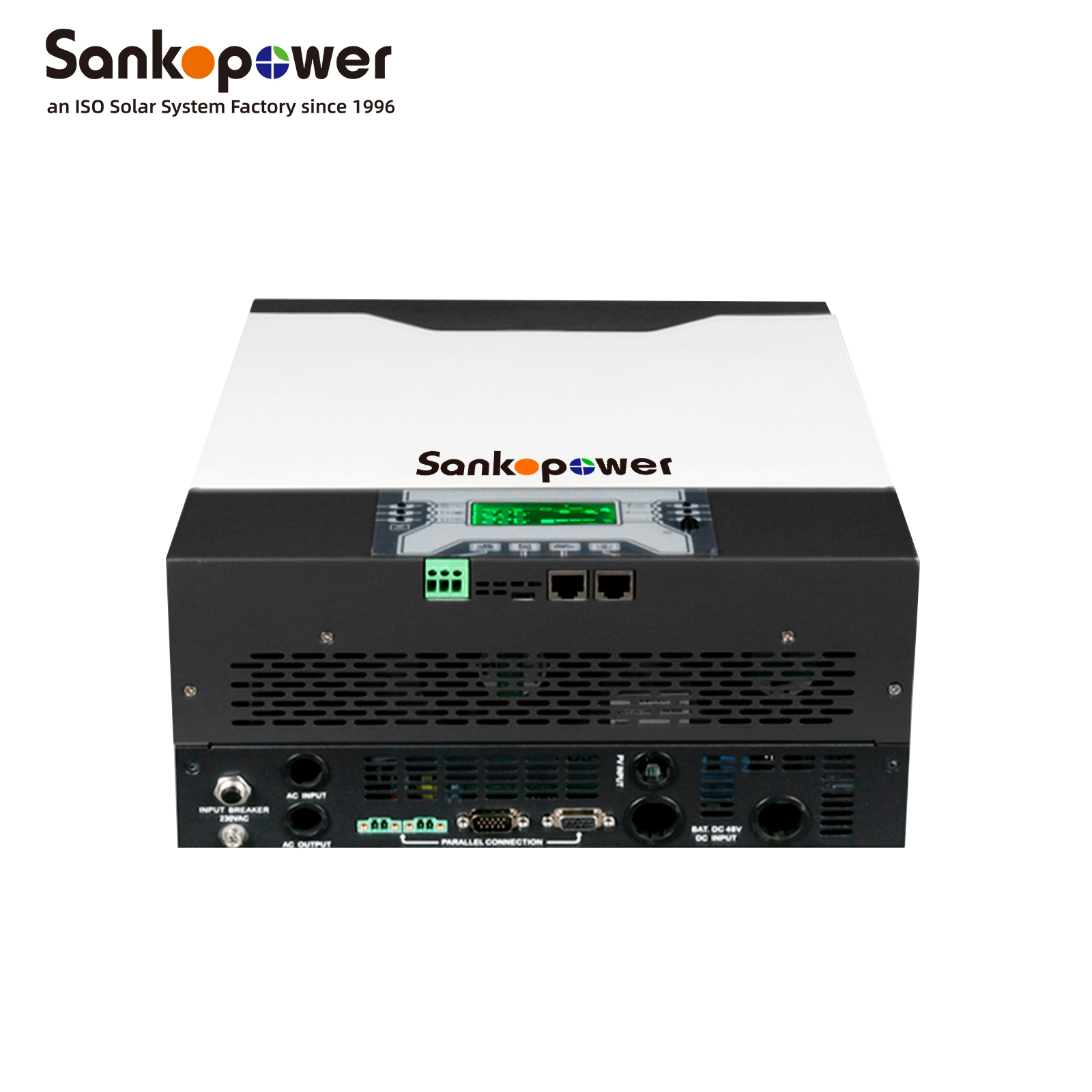

5000W 48V SolarPolo is a REAL Hybrid Solar Inverter with multi-function. It is on grid and off grid solar inverter， with 80A MPPT solar charger controller built-in, Pure sine wave, High frequency, Off Grid & OnGrid Solar Inverter, with WiFi & LCD, with Parallel function, can feed the grid. This inverter is a multi-function solar inverter/solar charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support.
NOTE 1: 5KW Hybrid MPPT Solar Inverter SolarPolo Series is a wide voltage Hybrid inverter. Solar panel input voltage must be higher than 120V so that can start up the solar inverter to work.
NOTE 2: 5KW Hybrid MPPT Solar Inverter SolarPolo Series supports the WIFI function, and have Built-in WIFI (Requires APP)
NOTE 3: 5KW Hybrid MPPT Solar Inverter SolarPolo Series has parallel function but customer have to buy parallel kit separately.
| Series | 5KW Solar Inverter SolarPolo |
| Rated Power | 5KW |
| INPUT | |
| Voltage | 230VAC |
| Selectable voltage | 176-280 VAC at 100% load |
| 110-280 VAC at 50% load | |
| Frequency Range | 50Hz/60Hz(Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation(Batt.Mode) | 230VAC±3% |
| Surge Power | 10400VA for 5 sec |
| Efficiency(Peak) | >95% ( Rated R load, battery full charged） |
| Transfer Time | 10ms typical (For Personal Computers) |
| 20ms typical (For Home Appliances) | |
| Wave form | Pure sine wave |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 64 VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT Solar Charger |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| Maximum PV Array Power | 5000W |
| MPP Range@ Operating Voltage | 120-430VDC |
| Maxmum Solar Charge Current | 80A |
| Maximum AC Charge Current | 80A |
| BEST PANEL CONFIGUTATION | |
| BEST PANEL CONFIGUTATION | 550Wp*8pcs*42V(4400Wp)*in series |
| PHYSICAL | |
| Products Dimension,D X W X H (mm) | 456*303*147 |
| Product Net Weight(kgs) | 12 |
| Packing Dimension,D X W X H (mm) | 530*377*217,1PC/CTN |
| Product Gross Weight(kgs) | 13.5 |
| Communication Interface | Removable OTG USB/RS232/RS458/BLE/Dry-contact,BMS interface, 9 pcs in parallel (only 5KVA) |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -15℃ to 60℃ |
*Product specifications are subject to change without further notice
